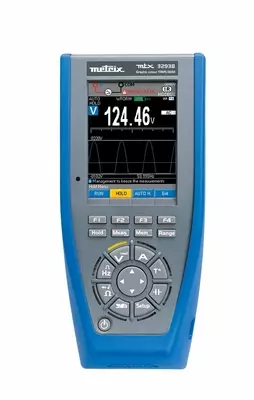

CAMTX3293-BT Digital Multimeter
The ASYC IV range of portable multimeter with a graphical display can be used for direct measurement of Voltage, Resistance, Current, Frequency, Temperature and Capacitance. They are rugged, compact and ergonomically designed for easy handling. IP rated to IP67 they are also water and dust tight to ensure a good lifespan in tough working environments.
High Performance Graphical Multimeter
The easy to read display has 320 x 240 pixels with a black background that allows:
- Multi-parameter graphical display of the trends on a summary screen
- Display of the waveform at 50/60 and 600 Hz
- Trace, cursors and zoom on the recordings
- Internal recording of 30 sequences
Dynamic Recorders
- Stores up to 30,000 measurements in its memory
- Simplified displays of the number of measurements, interval, duration and capacity.
- Internal storage for 30 sequences
- Interactive Zoom on recordings
- Simple monitoring mode displaying time/date stamps of MIN/MAX/PEAK+/PAK- and AVG values
The meter also features;
- USB communication as well as a Bluetooth option.
- SX-DMM software and Android application
- Rechargeable battery - instrument will continue to function when working
- Up to 100 hours usage on a full charge.
Specifications
- AC/DC Voltage 1μV - 1000V
- AC/DC Current 1000μA - 20A
- Frequency: up to 5MHz
- Resistance: up to 100MΩ
- Capacitance: up to 60mF
- Safety Rating CATIII 1000v / CATIV 600V
