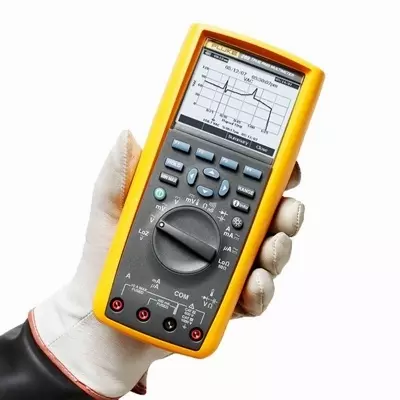

Fluke 289 True RMS Digital Multimeter
Fluke-289 True RMS Digital Multimeter
A flagship multimeter full of features that wont let you down on any task. With in-built logging it is ideal for tracking systems over a period of time to isolate specific issues and is designed to solve complex problems in electronics, plant automation, power distribution, and electro-mechanical equipment. Log data can be reviewed graphically on-screen, enabling you to solve problems faster and help minimize downtime.
- Large 50,000 count 320x240 (1/4 VGA) dot matrix display.
- Logging function with TrendCapture for easy review of logged data.
- Multiple readings per display provide more information at a glance.
- "I"-Info Button for convenient on-board help.
- PC interface for easy data transfer.
- Lo-Pass filter for motor drive measurements.
- LoZ - Low impedance function prevents false "ghost voltage" readings.
- 50ohm range for motor winding and low ohm measurements.
- Fluke Connect enabled - use the optional ir3000 FC connector to wirelessly send results to your smartphone or tablet
- Selectable AC filter (smoothing mode) makes sure readings are steady when input signals are rapidly changing or electrically noisy
- Adjustable recording and automatic hold thresholds - specify your own percentage change in readings to begin new recording events
- Save multiple logging sessions before PC downloads are needed
- AC/DC voltage ranges - 50.000mV, 500.00mV, 5.0000V, 50.000V, 500.00V, 1000.0V
- AC/DC current ranges - 500.00μA, 5000.0μA, 50.000mA, 400.00mA, 5.0000A, 10.00A
- Temperature range - -200.0°C to 1350.0°C (-328.0°F to 2462.0°F)
- Resistance ranges - 500.00Ω, 5.0000kΩ, 50.000kΩ, 500.00kΩ, 5.0000MΩ, 50.00MΩ, 500.0MΩ
- Capacitance ranges - 1.000nF, 10.00nF, 100.0nF, 1.000μF, 10.00μ, 100.0μF, 1000μF, 10.00mF, 100mF
- Frequency ranges - 99.999Hz, 999.99Hz, 9.9999kHz, 99.999kHz, 999.99kHz
- Two terminal 50Ω range with 1mΩ resolution, 10mA source current for measuring and comparing differences in motor winding resistance or contact resistance
- Low pass filter for accurate voltage and frequency measurements at the same time on adjustable speed motor drives and electrically noisy equipment
- LoZ volts function - low impedance voltage ensures ghost voltages are eliminated
- On-board information help key - if you're unsure about anything, hit the I key and the 289 will help you out!
- Real-time clock ensures all saved readings are time stamped for easy referencing
- Relative mode removes test lead resistance - ideal for low ohms or capacitance measurements
- True-RMS - ensures accuracy is maintained when testing AC voltage and current
- Measure up to 10A (20A for 30 seconds)
- 100mF capacitance range
- Peak capture to record transients as fast as 250μs
- Limited lifetime warranty
- Download Datasheet
