Electro PJP 12317-IEC-2A Fused PVC Test Lead

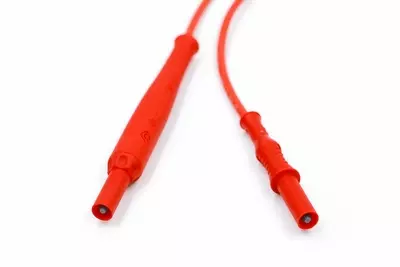

The 12317-IEC-2A assembly features a fused Straight 4 mm Banana (male) Plug to Straight 4 mm Banana (male) Plug Lead.
Fused test leads feature a built-in fuse within one of the connectors that provides an additional layer of protection to the individual undertaking an electrical measurement. Fused test leads can protect the technician against electrical hazards.
Specification
The wire is 2.5mm² and made from PVC. The wire comes in various lengths and is available in either red or black.
Voltage Rating of 1000V AC CAT III
Current Rating of 36A. Fuse 2A AC - 1000V AC
Other lengths, colours, Max Amps 12-36A, and alternative fuses available, please contact us for a quote.
