Electro PJP 12310-IEC-0A5 Fused Test Leads - Straight 4mm Leads - 0.5A Fuse

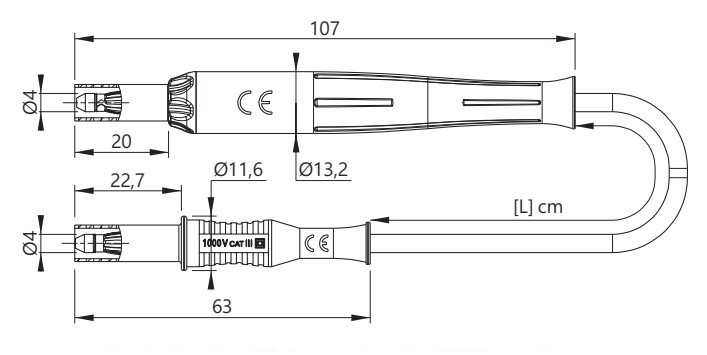

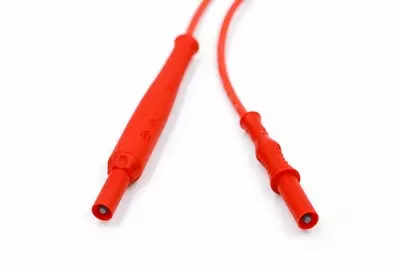

The 12310-IEC-0A5 assembly features a fused Straight 4 mm Banana (male) Plug to Straight 4 mm Banana (male) Plug Lead.
Fused test leads feature a built-in fuse within one of the connectors that provides an additional layer of protection to the individual undertaking an electrical measurement. Fused test leads can protect the technician against electrical hazards.
Specification
The wire is 0.75mm² and made from PVC. The wire comes in various lengths and is available in either red or black.
Voltage Rating of 1000V AC CAT III
Current Rating of 12A. Fuse 0.5A AC - 1000V AC
Other lengths, colours, Max Amps 20-36A, and alternative fuses available, please contact us for a quote.
