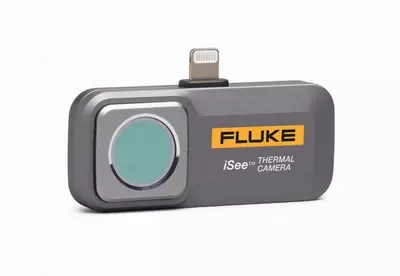

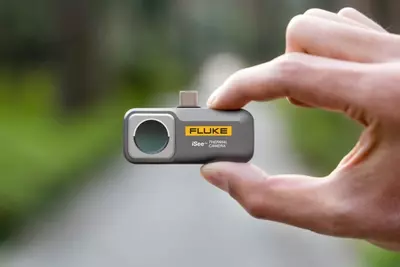

Fluke iSee Mobile Thermal Camera TC01A & TC01B
The new mobile thermal cameras from Fluke allows temperature and thermal detection can be measured and carried out anytime anywhere using your mobile phone.

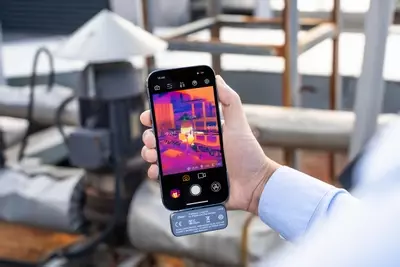

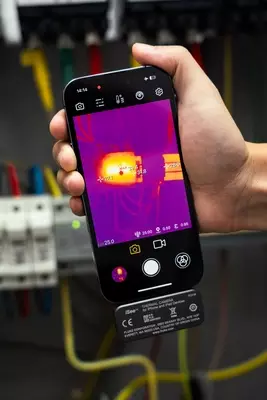

Just plug in the camera modules into the Type-C USB or Lightning socket and download the Fluke iSee Mobile Thermal Camera app. Use the app to conduct mechanical and electrical inpection, HVAC inspection, product R&D and quality control.
The image quality of the iSee Mobile Termal Cameras is comparable to professional thermal cameras and uses a 256 x 192 pixel detailed image quality. It can measure up 550°C, suitable for a vast array of applications and has 50 mk (0.05°C) termal sensitivity for fine differences.
Models:

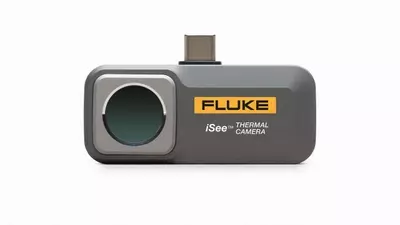

- TC01A - Use with Type C USB (Andriod 6.0 or HamononyOS 2.0 or later) smartphone with OTG function enabled.
- TC01B - Use with Lightning socket on iPhone using iOS 11.0 or later .
Features
- Plugs into either a Type-C USB (TC01A) or Lightning (TC01B) socket on an Andriod or iPhone.
- Adjustable emissivity to apply to different materials.
- Real-time temperature alarm for timely response of abnormal conditions.
- Automatic time-lapse capture mode for unattended operation.
- Infrared and visible image comparison for locating, comparing and archiving.
- Easy image and video management.
- Automatically generate infrared inspection reports (TC01B Only).
- Robust design - able to withstand a 1M Drop
- Withstands conditions of dirt and water (IP54)
Specification
- 256 x 192 Infrared Resolution
- -10°C to 550°C Temperature Measurement Range
- Termal sensitivity: 50 mK
- Spectral range: 8-14 μm
- Measurement distance: 0.25m - 5m
- Fixed focal length 3.2mm
- Field of view: 56° x 42°
- Frame rate 9Hz or 25Hz
- L: 60mm W: 33.5mm H: 11.2mm
View the Fluke iSee Datasheet for more product information
