Chauvin Arnoux MA110 Current Sensor
CAMA110
- Description

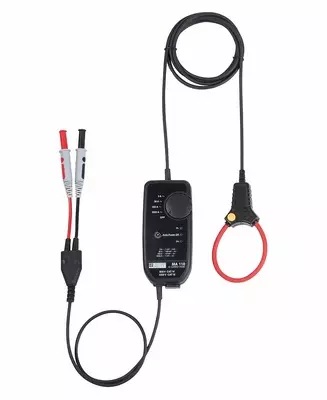

Chauvin Arnoux MA110 Single Phase Current Sensor

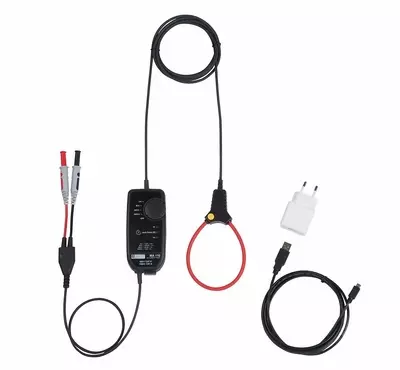

Compact and lightweight the miniflex sensors can encircle all types of conductors whatever the dimensions and shapes. The flexibility means they can be used in restricted space and are ideal for any residential or industrial purpose. The MA 110 offers reading from 80mA when connected to a multimeter or measuring device using the supplied banana plugs. Fitted with a sensor length of 170mm or 250mm which allows for a diameter of 45mm/70mm for the conductor to be measured. The MA110 is powered by 2 AA batteries and also comes with a power lead to enable power from a USB where possible.
Specification
- Range 80mA to 3kA
- 4 Calibres
- Clamp Dia. 45/70mm
- IP67
- Output Signal: AC Voltage
- Battery Life 300 hours
- 600V CATIV
- Download Datasheet
