TE Ampseal 16 RED 6way Automotive Connector Breakout

WACB-607

Warwick Test Supplies

Description

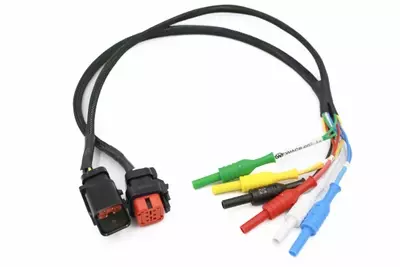

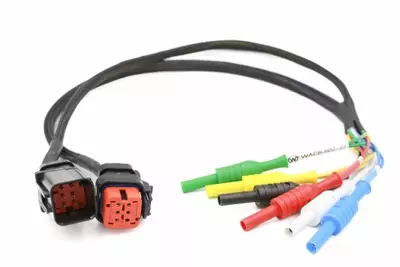

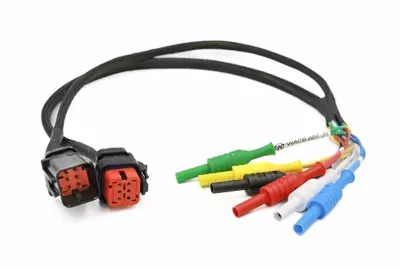

WACB-607 TE Ampseal 16 RED 6 pin Automotive Diagnostic Breakout Lead

Connector Part Number: 776433-1/776537-1

The 6 Way TE Ampseal 16 RED breakout lead has been designed to connect quickly and reliably to 6 pin RED Ampseal 16 automotive connectors to diagnose signals commonly found on agricultural, industrial and commercial vehicles such as plant, tractors and trucks. The breakout lead features both female, 776433-1, and male, 776537-1 connectors.

Prevent damage to the vehicles' sensors and connectors often caused by back-pin probing. Conduct voltage, current readings and insulation tests on various sensors, actuators and components with new found ease.

The WACB-607 breakout lead features 4mm banana plug sockets that can be used with a Digital Multimeter, Insulation test meter or Oscilloscope with the use of BNC to 4mm Banana Plug Patch Leads.

Reliable readings start with the point of connection. Ensure your findings are accurate and prevent mis-diagnosis with reliable breakouts that are purpose built for the workshop.

Our WACB-607 automotive breakout lead use the following colour code convention:
- Pin 1 - GREEN wire and female banana plug
- Pin 2 - RED wire and female banana plug
- Pin 3 - BLUE wire and female banana plug
- Pin 4 - YELLOW wire and female banana plug
- Pin 5 - WHITE wire and female banana plug
- Pin 6 - BLACK wire and female banana plug
