Winslow Adaptics W9194 Surface-Mount PLCC Plug - 52 Pin

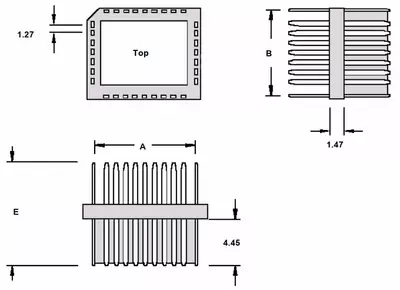

(Image representative of range)
The W9194 PLCC Plug has 52 PLCC pins. These connectors feature a Butt-Jointing Surface-Mount PLCC footprint.
Pin Length Variations
W9194-ZC154 - 16.5mm
W9194-ZC155 - 15.2mm
W9194-ZC156 - 10.8mm
W9194-ZC163 - 21.6mm
Specification
Gender: Male
Number of contacts: 52
Body Orientation: Butt-Jointing Surface-Mount Plugs
Pitch Spacing: 1.27

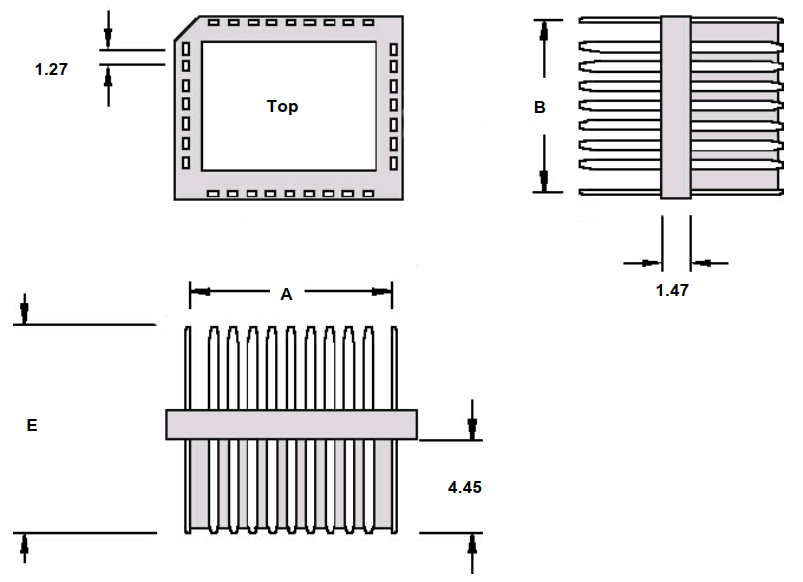

'A' Length: 18.9mm
'B' Length: 18.9mm
