Winslow Adaptics W9195 Surface-Mount PLCC Plug - 68 Pin
(Image representative of range)
The W9195 PLCC Plug has 68 PLCC pins. These connectors feature a Butt-Jointing Surface-Mount PLCC footprint.
Pin Length Variations
W9195-ZC154 - 16.5mm
W9195-ZC155 - 15.2mm
W9195-ZC156 - 10.8mm
W9195-ZC163 - 21.6mm

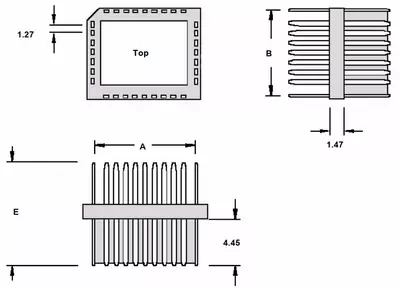

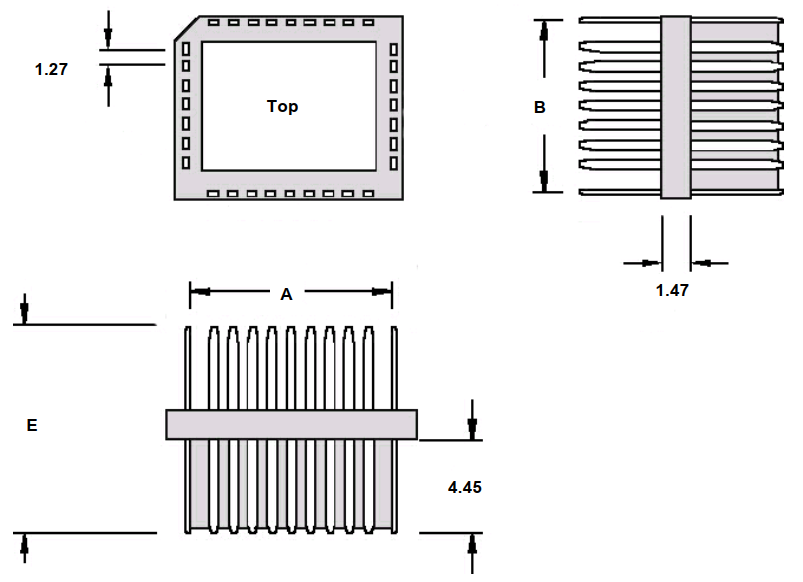

Specification
Gender: Male
Number of contacts: 68
Body Orientation: Butt-Jointing Surface-Mount Plugs
Pitch Spacing: 1.27
'A' Length: 23.9mm
'B' Length: 23.9mm
