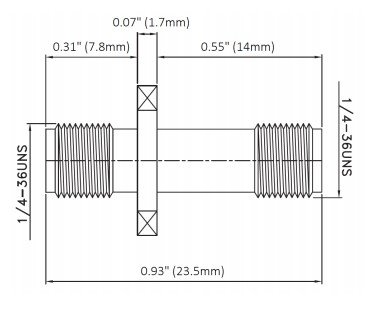

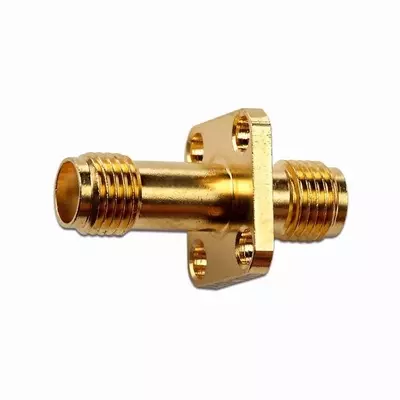

Pomona 72973 SMA Jack (F) to Jack (F) Panel Mount
This SMA Jack (F) to Jack (F) connector is precision machined and gold plated to be of small size and as durable as possible. Designed for high bandwidth DC 18 GHz frequency range.
Materials
- Body - Machined brass with gold plating.
- Center Contacts - Plug is gold plated brass and Jack is gold plated Beryllium copper.
- Insulators - PTFE.
- Crimp Ferrules - Copper with gold or nickel plating.
- Gaskets - silicone rubber
Specification
- Impedance: 50 Ω
- Frequency Range: DC – 18 GHz max.
- Working voltage: 500 Vrms max.
- Insulation Resistance: 5000 MΩ max.
- Insertions: 500
View the datasheet attached for more information.
